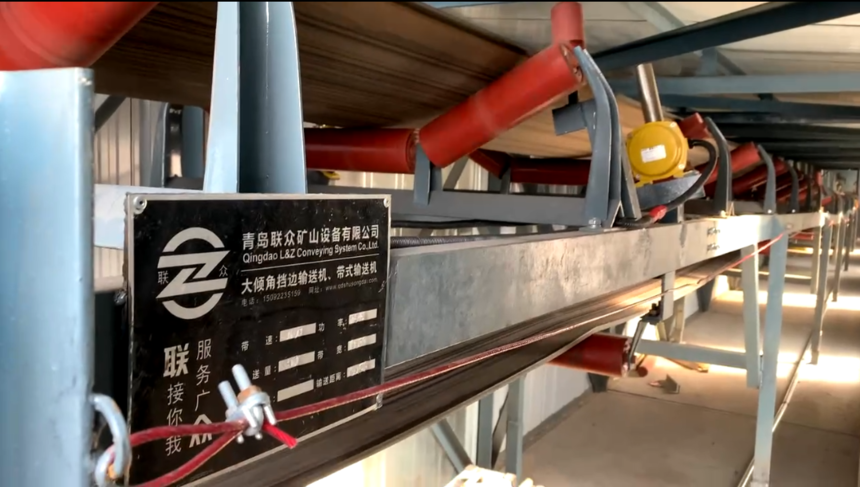

TD75/DTII/DTII(A) are widely used in metallurgy, coal, transportation, hydropower and other departments for conveying bulk materials or finished products due to its advantages of large conveying capacity, simple structure, convenient maintenance, low cost and strong versatility. According to the requirements of the conveying process, it can be transported by a single machine, or a horizontal or inclined conveying system composed of multiple or other conveyors.
Conveying capacity (m 3 / h) Belt width (mm) | 0.8 | 1 | 1.25 | 1.6 | 2 | 2.5 | 3.15 | 4.5 | 5 | 5.6 | 6.5 |
| 500 | 69 | 87 | 108 | 139 | 174 | 217 |
|
|
|
|
|
| 650 | 127 | 159 | 198 | 254 | 318 | 397 |
|
|
|
|
|
| 800 | 198 | 248 | 310 | 397 | 496 | 620 | 781 |
|
|
|
|
| 1000 | 324 | 405 | 507 | 649 | 811 | 1014 | 1278 |
|
|
|
|
| 1200 |
| 593 | 742 | 951 | 1188 | 1486 | 1872 | 2674 | 2971 |
|
|
| 1400 |
| 825 | 1032 | 1321 | 1652 | 2065 | 2602 | 3718 | 4130 |
|
|
| 1600 |
|
|
|
| 2186 | 2733 | 3444 | 4920 | 5466 | 6122 |
|
| 1800 |
|
|
|
| 2795 | 3494 | 4403 | 6291 | 6989 | 7829 | 9083 |
| 2000 |
|
|
|
| 3470 | 4338 | 5456 | 7808 | 8676 | 9717 | 11277 |
| 2200 |
|
|
|
|
|
| 6843 | 9776 | 10863 | 12166 | 14120 |
| 2400 |
|
|
|
|
|
| 8289 | 11842 | 13158 | 14737 | 17104 |
