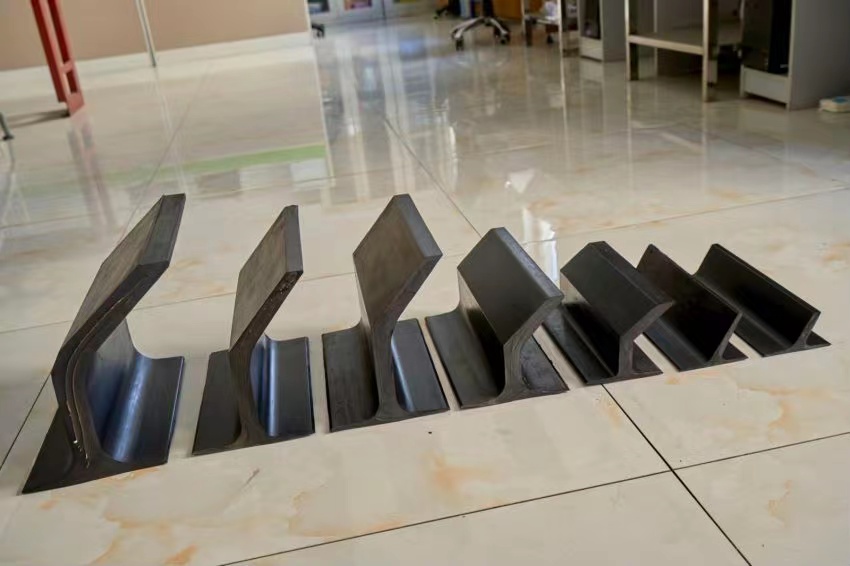

Structure: The sidewall conveyor belt consists of three parts(base belt、sidewall、cleat） . The base belt can be divided into layered fabric conveyor belt 、steel cord conveyor belt or metal mesh conveyor belt; the sidewall is divided into S-type W-type; the cleat is divided into T-type TC-type, etc

Uses and Advantages:

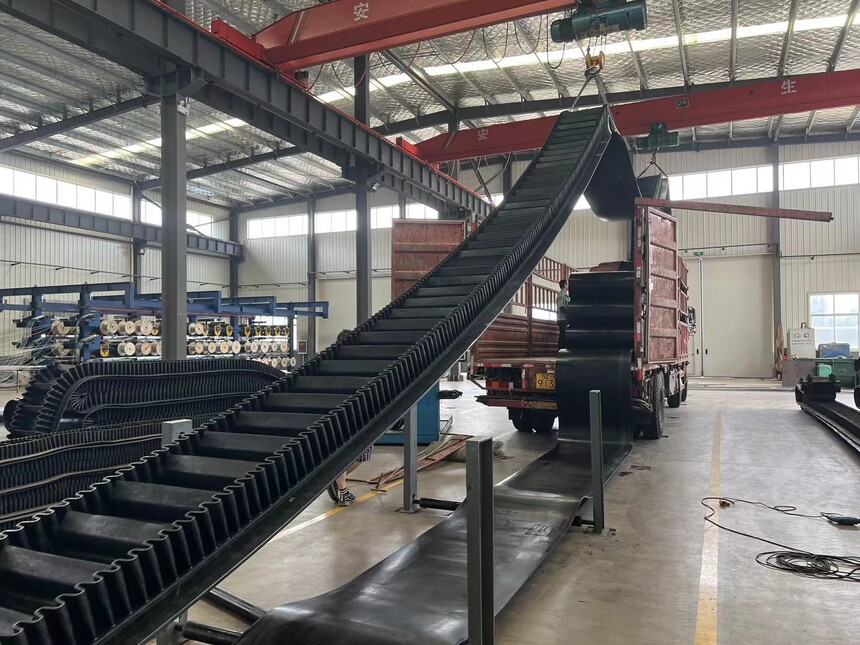

1. Suitable for the transportation of bulk materials at 0°~90°;

2. It has the characteristics of wide use range, small footprint, reduced civil engineering investment, low maintenance cost, continuous transportation, high efficiency, large Angle transportation, low freight, and can shorten the transportation distance, save manpower and material resources;

3, To solve the ordinary conveyor belt and pattern belt can not reach the conveying Angle;

4. According to the use environment, design a complete and independent transportation system, to avoid intermittent transportation and complex transportation lifting system;

5, can be horizontal, tilt, vertical and variable Angle direction transportation of all kinds of bulk materials, from coal, ore, sand to fertilizer and grain;

6, the particle size of the material is not limited, can be small to 400mm, the transport volume can be from 1m³ / h to 6000m³ / h.

Features: 1, Increased the transmission Angle (30~90 degrees);

2. Small land area, less investment;

3. Large transportation volume and higher lifting height;

4, From horizontal to tilt (or vertical) can be smooth transition;

5, Suitable for conveying easy to drop powder, granular, small block materials;

6. Low energy consumption and simple structure.

Sidewall conveyor belt parameters reference:

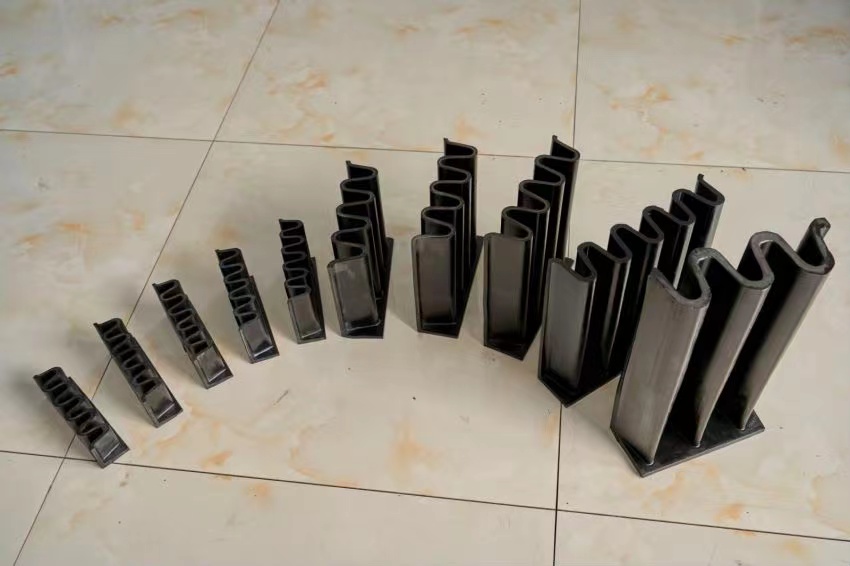

Sidewall height （mm)）	40 S	50 S	60 S	80 W	100 S	120 S	160 S	200 S	240 S	300 S
Sidewall weight (㎏ / m)	0.8	1.35	1.5	1.7	2	2.2	3.9	4.9	5.2	6.5
Cleat height (mm)	55 TC	70 T	75 T/TC	90 TC	110 TC	140 TC	180 TC	220 TC	280 TC	320 TC
Cleat weight (kg/m)	1.2	1.3	1.5	1.7	1.9	2.5	5.1	7.1	8.7	10.1
Base belt width(mm）	500-1400
