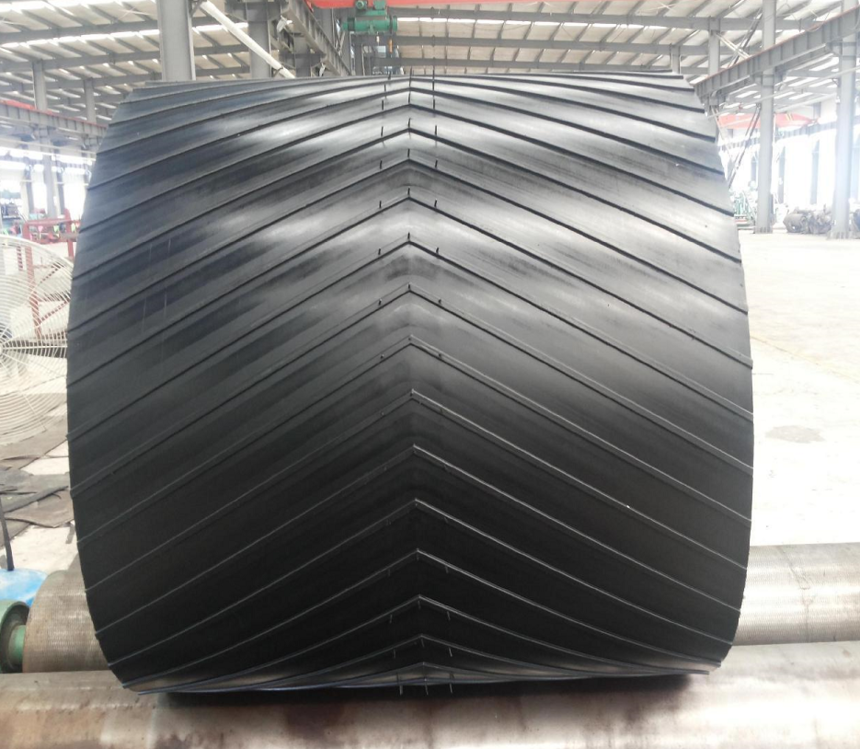

General Pattern type: herringbone type, fishbone type, cylindrical type, segmented v-type, u-type
Pattern conveyor belt conveying environment: The most obvious effect when conveying bulk materials,
Conveyor belt material: Cotton Canvas (CC) , Nylon Canvas (NN) , polyester canvas (EP) or wire rope (St) , natural rubber, butyl rubber, carbon black and some chemical raw materials,
Varieties: according to the different properties of covering adhesive can be divided into ordinary type, heat-resistant type, fire-resistant type, cold-resistant type, acid-alkali-resistant type, oil-resistant type, etc. .
Belt core material: NYLON core NN100, NN150, NN200, NN300, NN400, NN500 polyester core EP100, EP150, EP200, EP300, EP400, EP500 steel cord ST1000-ST5400 belt production
Belt width range: 400 mm ~ 1400 mm
Belt height (mm) : 5, 10,15,20,25 mm note: Pattern shape can be designed according to User's requirements.
Pattern spacing (mm) : 125,200,250,300 mm, the above parameters can be changed or re-designed according to the user's requirements or actual use.
A: classification
Pattern conveyor belt can be divided into shallow pattern and deep pattern according to the pattern specification. According to the pattern shape, it can be divided into eight character pattern, one word pattern convex or concave pattern
Two: use
Widely used in coal mine electric power chemical grain and other fields of conveying materials.
Three: characteristics
Transportation Angle 0 ˚ -45 ˚, the surface pattern improves the conveying efficiency and prevents the material decline.
Four: the decorative pattern conveyor belt specification reference
tape width | Existing mold specifications | Core material | remarks |
300-1200 | R-type 3*5- - -340 | Cotton canvas or EP | ¢Ù The R type is marked with a herringbone pattern |
R-type 10*20- -280 | ¢Ú Pattern shape specifications can be designed according to customer requirements |
R Type 10*15 ¨C 220 |
R-type 5*20- - -180 |
R Type 5*25- - -235 |
Bump point 4*8 |
Fove point 4*10 |
